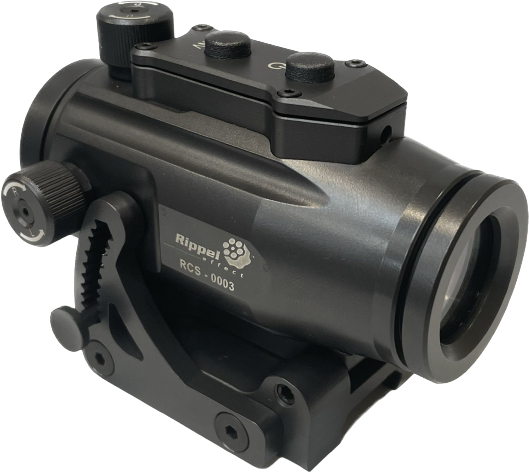

RCS40™

A multipurpose sighting system to aim the assault rifle and the under-slung grenade launcher.
Ergonomically superior to side-mounted UBGL sights.
The operator can remain engaged with the target when switching from the AR to the UBGL.
The RCS40™ provides full night fighting capability. Personal night vision devices can be used to enhance application.
The RCS40™ can be used as a stand-alone sight for the UBGL or for a Single Shot 40mm Launcher when required.

Technical Data

Characteristic	Description
Optics
Type	Parallax-free, collimated reflex.
Eye relief	Unlimited.
Optical coating	Anti-reflex.
Electronic
Reticule illumination	LED
Battery type	1 x CR1632 commercial battery.
Reticule brightness control	Auto adjustment to ambient light.
Functions	On/Off switch and NV switch.
Mechanical
Sight body material	Alu 6082 T6.
Surface finish	Gunkote.
Weapon interface	MIL-STD-1913 Picatinny.
40mm ballistic compensator	LV 25 to 400m
Dimensions
Length	95.5mm
Height	68.5mm
Width	63.0mm
Weight	350g
Environmental
Temperature range	-30°C to +55°C
Water immersion	1.5m for up to two hours
