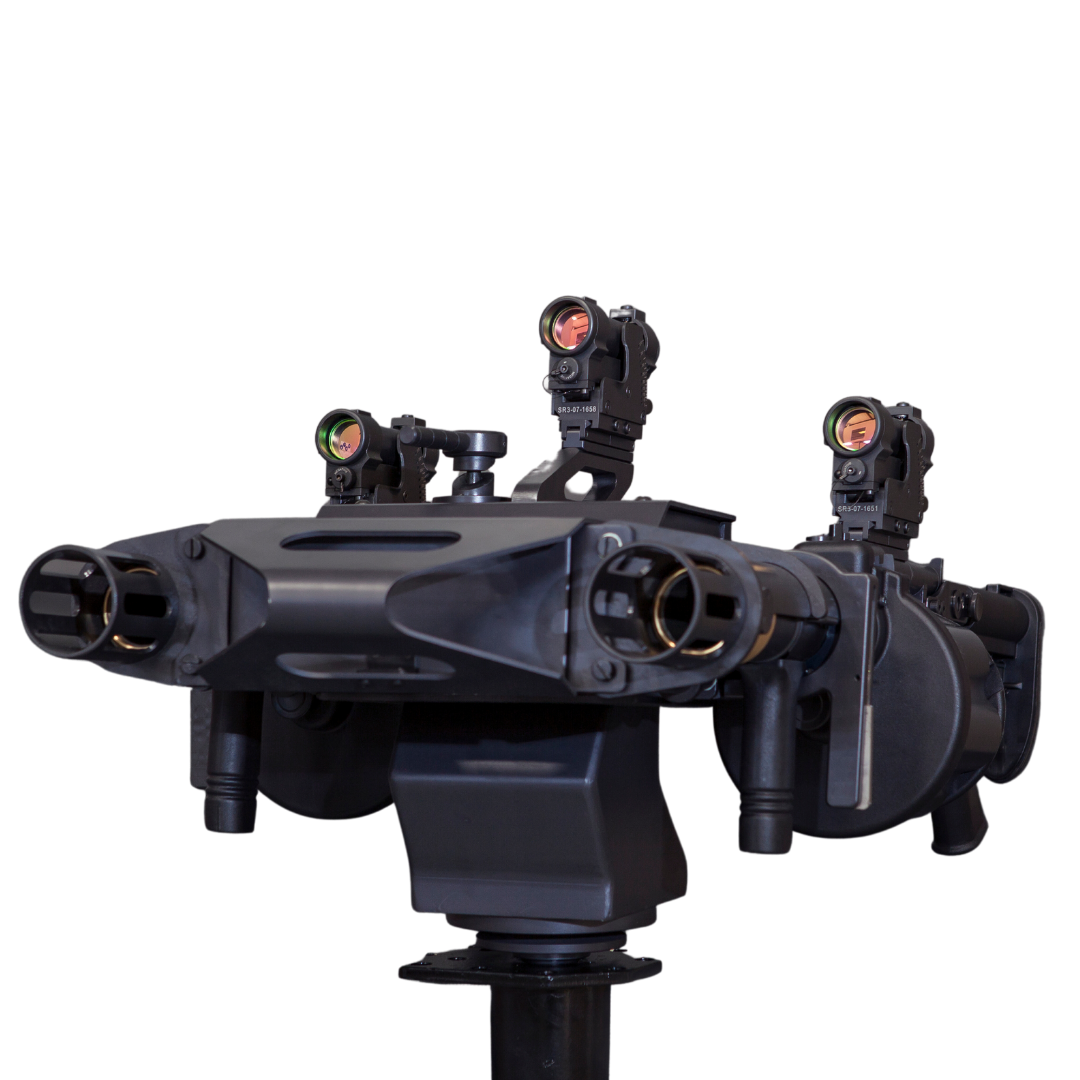

Rippel double mount
  • The Rippel effect double mount is a recoil bffered soft mount system designed for use on light tactical vehicles or boats. The unique clip-in clip-out design makes it possible for the operator to use the same 40mm grenade launchers (40mm MGL) in a mounted- and dismounted role.

  • Increased firepower during ambush-, assault- and retro operations.

  • Light weight, can be fitted or removed by one operator.

  • Possible to use as a fixed platform in a defensive position.

Technical Data

Characteristic

Description

Weight

14.1kg
Length

460mm

Height 430mm
Width 450mm

Surface Finish

Gunkote
Sighting Options

Rippel Effect GR40®

or Rippel Effect GRN40®

Safety

Traverse lock

3 x Stow positions at -10º, 0º, +45º

Elevation

-10º to +75º from horizontal (depending on the gunner’s position)
Arc of fire

Gunner’s position 1: up to 180º when mounted on a pintle mount, facing forward on the vehicle centre line

Gunner’s position 2: up to 270º when mounted on a swing arm and depending on the gunner’s position in the vehicle

Mount Capacity 2 x Rippel Effect 40mm grenade launchers (40mm MGL)
Mount to vehicle interface Standard NATO pintle
