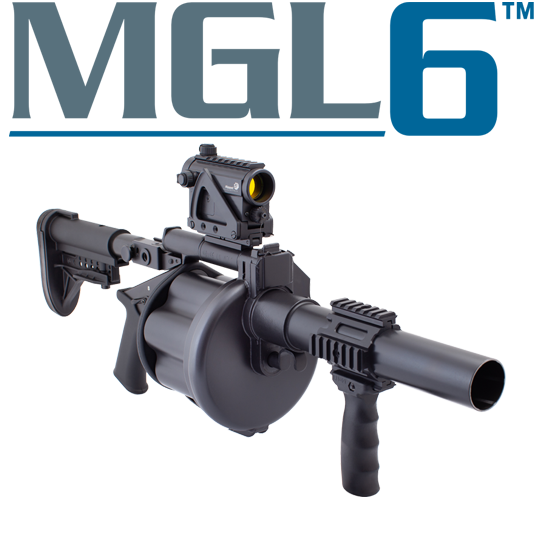

MGL6™

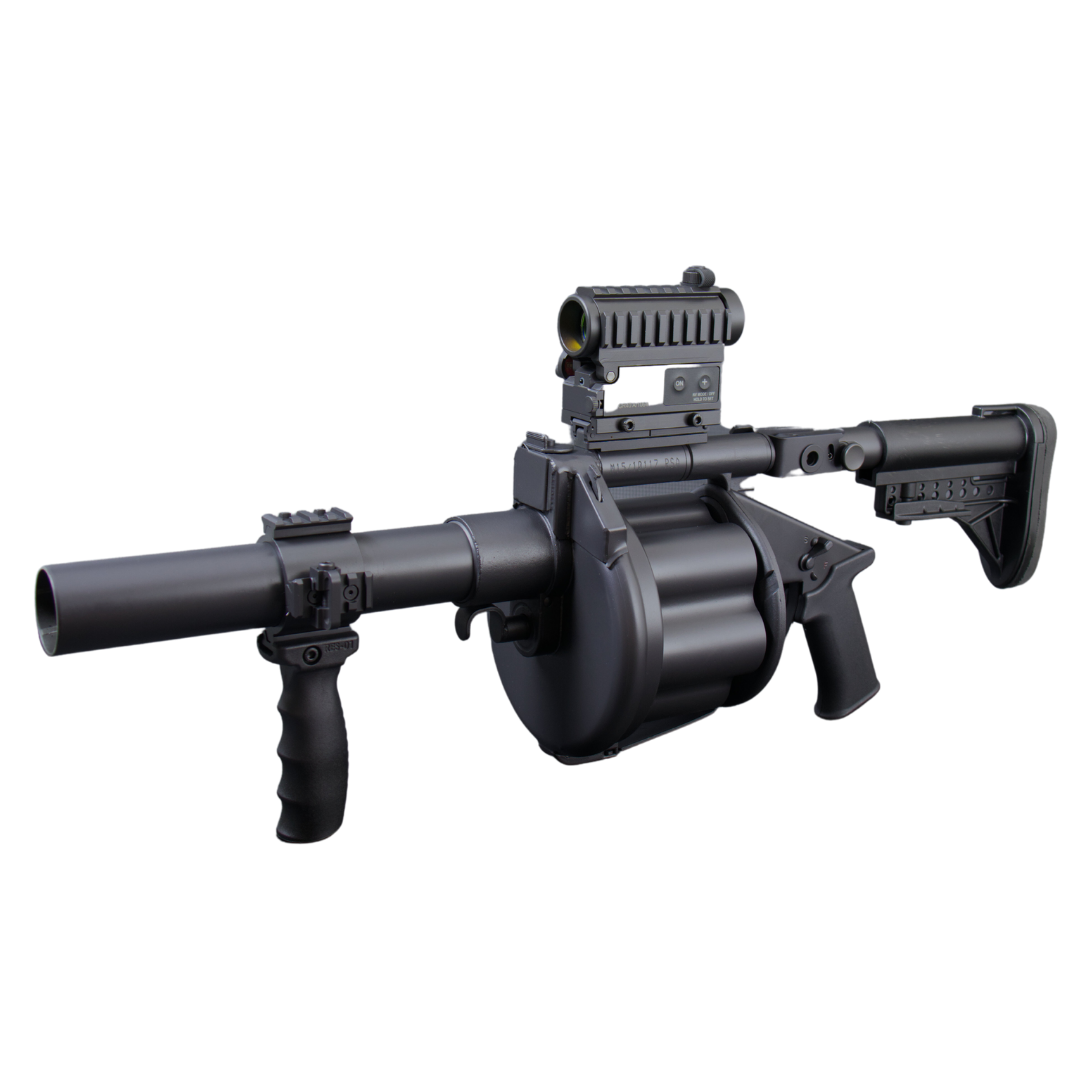

Multi-shot 40mm grenade launcher. MGL40.
  • The MGL6™ is a lightweight, individually operated, shoulder fired, low velocity grenade launcher.
  • The various ammunition options allow the operational commander extreme flexibility in tactical offensive and defensive application in all theatres of operation.
  • The GRN40® sighting system, specifically designed for 40mm grenade launchers (40mm MGL) enhances increased first hit probability and accuracy.
  • The MGL6™ has an extendable butt stock with 2 elevation settings and a front grip group with picatinny rails for accessories.

Technical Data

Characteristic

Description
Calibre 40mm
Length 690mm
Length with stock extended 770mm
Weight (unloaded) 5.4 kg
Height (without sight) 220mm
Width 165mm
Length of barrel 260mm
Length of cylinder 105mm
Effective range 375m with 40 x 46mm low velocity ammunition
Rifling R.H twist progressing from 0 to 1 turn in 1.2m
Magazine type Rotating cylinder
Cylinder capacity 6 rounds of less than 105mm in length
Mode of fire Semi-automatic
Advance mechanism Gas operated
Surface finish Gunkote
Sight GRN40® Mechanical Sighting System
